LME-AJ Linear Bushing
Datasheet

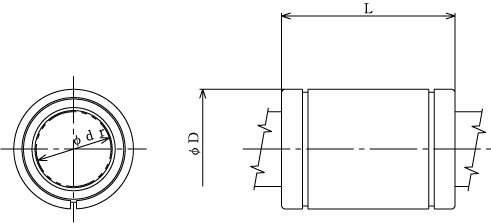

| Model No. | Main dimensions | |||||
| Inscribed bore diameter | Outer Diameter | Length | ||||
| dr | Tolerance | D | Tolerance | L | Tolerance | |
| mm | mm | mm | mm | mm | mm | |
| LME 5-AJ | 5 | 0.008 | 12 | 0 | 22 | 0 |
| 0 | –0.008 | –0.2 | ||||
| LME 8-AJ | 8 | 0.008 | 16 | 0 | 25 | 0 |
| 0 | –0.008 | –0.2 | ||||
| LME 12-AJ | 12 | 0.008 | 22 | 0 | 32 | 0 |
| 0 | –0.009 | –0.2 | ||||
| LME 16-AJ | 16 | 0.009 | 26 | 0 | 36 | 0 |
| –0.001 | –0.009 | –0.2 | ||||
| LME 20-AJ | 20 | 0.009 | 32 | 0 | 45 | 0 |
| –0.001 | –0.011 | –0.2 | ||||
| LME 25-AJ | 25 | 0.011 | 40 | 0 | 58 | 0 |
| –0.001 | –0.011 | –0.3 | ||||
| LME 30-AJ | 30 | 0.011 | 47 | 0 | 68 | 0 |
| –0.001 | –0.011 | –0.3 | ||||
| LME 40-AJ | 40 | 0.013 | 62 | 0 | 80 | 0 |
| –0.002 | –0.013 | –0.3 | ||||
| LME 50-AJ | 50 | 0.013 | 75 | 0 | 100 | 0 |
| –0.002 | –0.013 | –0.3 | ||||
| LME 60-AJ | 60 | 0.013 | 90 | 0 | 125 | 0 |
| –0.002 | –0.015 | –0.4 | ||||
| LME 80GA-AJ | 80 | — | 120 | — | 165 | — |
